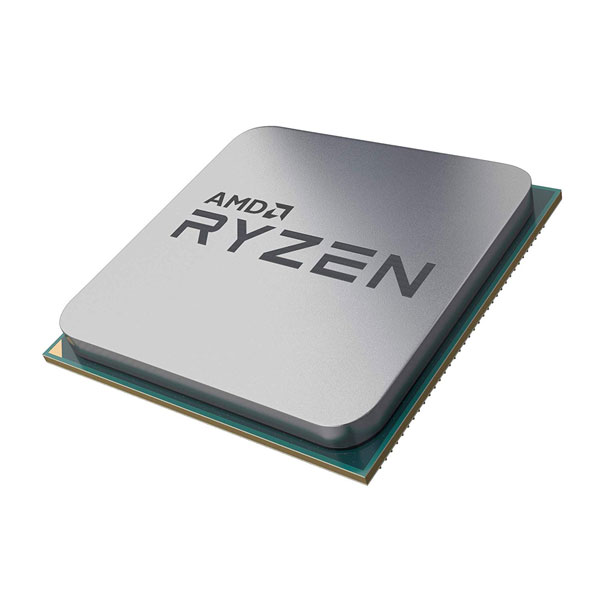

AMD Ryzen 5 3400G Processor with Radeon RX Vega 11 Graphics

Description

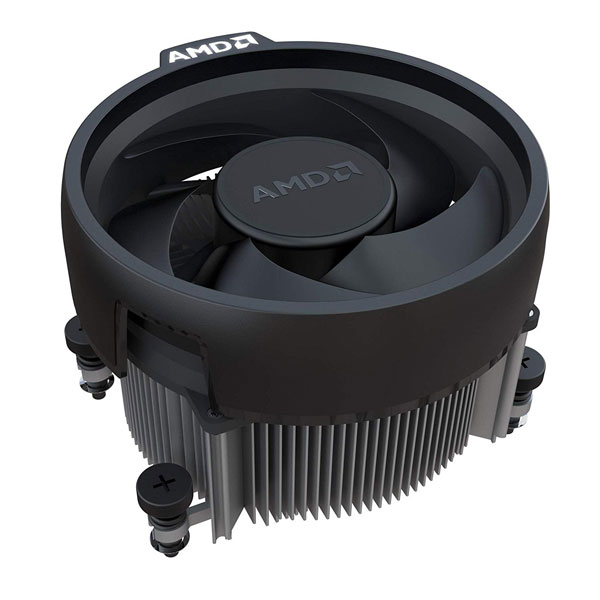

General Specifications: Name : AMD Ryzen 5 3400G with Radeon RX Vega 11 Graphics Family : Ryzen Series : Ryzen 3000 Series Form Factor : Desktops, Boxed Processor Market Segment : Mainstream Desktop AMD PRO Technologies : No Regional Availability : Global , China , NA , EMEA , APJ , LATAM Former Codename : Picasso Processor Architecture : Zen+ # of CPU Cores : 4 Multithreading (SMT) : Yes # of Threads : 8 Max. Boost Clock : Up to 4.2 GHz Base Clock : 3.7 GHz L1 Cache : 384 KB L2 Cache : 2 MB L3 Cache : 4 MB Default TDP : 65W AMD Configurable TDP (cTDP) : 45-65W Processor Technology for CPU Cores : 12nm FinFET CPU Compute Die (CCD) Size : 210mm² Package Die Count : 1 Total Transistor Count : 4.94 Billion Unlocked for Overclocking : Yes CPU Socket : AM4 Supporting Chipsets : X570 , X470 , X370 , B450 , B350 , A320 CPU Boost Technology : Precision Boost 2 Instruction Set: x86-64 Supported Extensions : AES , AMD-V , AVX , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 Thermal Solution (PIB) : AMD Wraith Spire Thermal Solution (MPK) : AMD Wraith Spire Max. Operating Temperature (Tjmax) : 95°C *OS Support: Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit Connectivity: Native USB 3.2 Gen 2 (10Gbps) : 0 Native USB 3.2 Gen 1 (5Gbps) : 4 Native USB 2.0 (480Mbps) : 0 Native SATA Ports : 0 PCI Express® Version : PCIe® 3.0 Native PCIe® Lanes (Total/Usable) : 20 , 16 Additional Usable PCIe Lanes from Motherboard : X470 2x Gen 3, 8x Gen 2 NVMe Support : Boot , RAID0 , RAID1 , RAID10 System Memory Type : DDR4 Memory Channels : 2 Max. Memory : 64 GB System Memory Subtype : UDIMM Max Memory Speed : 2x1R DDR4-2933 2x2R DDR4-2667 4x1R DDR4-2133 4x2R DDR4-1866 ECC Support : Yes (Requires mobo support) Graphics Capabilities: Graphics Model : Radeon RX Vega 11 Graphics Graphics Core Count : 11 Total Graphics Shaders : 704 Graphics Frequency : 1400 MHz GPU Max. Memory : 2 GB WDDM Version : 2.7 DirectX Version : 12 OpenGL : 4.6 OpenCL :2.2 DisplayPort Version : 1.4a DisplayPort Extensions : Adaptive-Sync , HBR3 , HDR Metadata DisplayPort Max Refresh Rates (SDR): 3840x2160 @ 60Hz , 3440x1440 @ 144Hz , 2560x1440 @ 180Hz , 1920x1080 @ 240Hz DisplayPort Max Refresh Rates (HDR): 3840x2160 @ 60Hz , 3440x1440 @ 60Hz , 2560x1440 @ 60Hz , 1920x1080 @ 120Hz HDMI Version : 2.0 HDCP Version Supported : 2.2 USB Type-C DisplayPort Alternate Mode : Yes Multi-Monitor Support : Yes Max Displays : 3 AMD FreeSync™ : Yes AMD Eyefinity Single Large Surface (SLS): No Wireless Display : Miracast Max Video Encode Bandwidth (SDR) : 1080p205 8bpc H.264, 1440p115 8bpc H.264, 2160p51 8bpc H.264, 1080p205 8bpc H.265, 1440p115 8bpc H.265, 2160p51 8bpc H.265 Max Video Decode Bandwidth: 1080p60 MPEG2, 1080p60 VC1, 1080p240 8bpc VP9, 1080p240 10bpc VP9, 1080p240 H.264, 1080p240 8bpc H.265, 1080p240 10bpc H.265, 1080p240 JPEG 8bpc Warranty:3 Years
