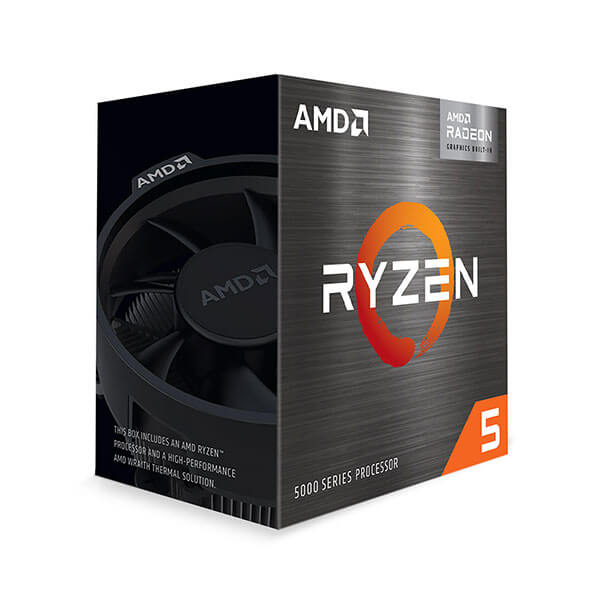

AMD Ryzen 5 5500GT Processor with Radeon Graphics

Description

Model AMD Ryzen 5 5500GT Platform Boxed Processor Market Segment Mainstream Desktop Product Family AMD Ryzen™ Processors Product Line AMD Ryzen™ 5 5000 G-Series Desktop Processors with Radeon™ Graphics Consumer Use Yes Commercial Use No Former Codename "Cezanne" Architecture "Zen 3" # of CPU Cores 6 Multithreading (SMT) Yes # of Threads 12 Max. Boost Clock Up to 4.4GHz Base Clock 3.6GHz L1 Cache 384KB L2 Cache 3MB L3 Cache 16MB Default TDP 65W AMD Configurable TDP (cTDP) 45-65W Processor Technology for CPU Cores TSMC 7nm FinFET CPU Compute Die (CCD) Size 180mm² Package Die Count 1 Unlocked for Overclocking Yes CPU Socket AM4 Thermal Solution (PIB) AMD Wraith Stealth Thermal Solution (MPK) AMD Wraith Stealth Max. Operating Temperature (Tjmax) 95°C *OS Support Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. Connectivity PCI Express® Version PCIe® 3.0 NVMe Support Boot, RAID0, RAID1, RAID10 System Memory Type DDR4 Memory Channels 2 Max. Memory 128GB System Memory Subtype UDIMM Max Memory Speed 2x1R DDR4-3200 2x2R 2x2R DDR4-3200 4x1R DDR4-2933 4x2R DDR4-2667 Graphics Capabilities Integrated Graphics Yes Graphics Model Radeon™ Graphics Graphics Core Count 7 Graphics Frequency 1900 MHz Warranty 3 Years
