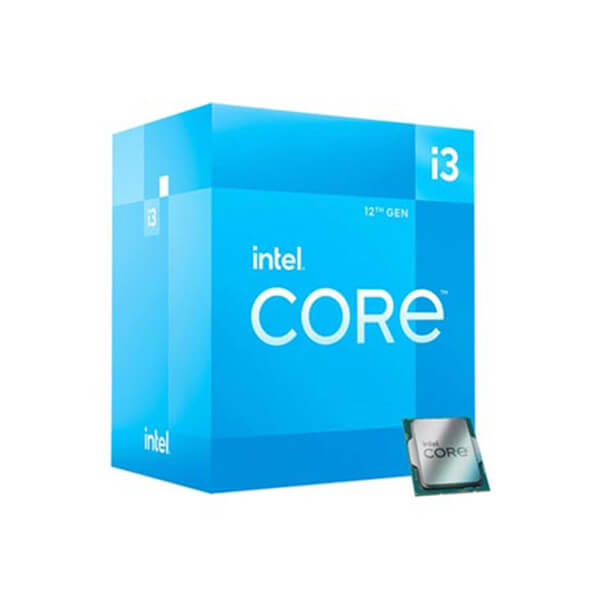

Intel Core i3-12100 Processor

Description

Essentials Product Collection 12th Generation Intel® Core™ i3 Processors Code Name Products formerly Alder Lake Vertical Segment Desktop Processor Number i3-12100 Lithography Intel 7 Use Conditions PC/Client/Tablet CPU Specifications Total Cores 4 # of Performance-cores 4 # of Efficient-cores 0 Total Threads 8 Max Turbo Frequency 4.30 GHz Performance-core Max Turbo Frequency 4.30 GHz Performance-core Base Frequency 3.30 GHz Cache 12 MB Intel® Smart Cache Total L2 Cache 5 MB Processor Base Power 60 W Maximum Turbo Power 89 W Memory Specifications Max Memory Size (dependent on memory type) 128 GB Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s Max # of Memory Channels 2 Max Memory Bandwidth 76.8 GB/s Processor Graphics Processor Graphics ‡ Intel® UHD Graphics 730 Graphics Base Frequency 300 MHz Graphics Max Dynamic Frequency 1.40 GHz Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1 Execution Units 24 Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz Max Resolution (DP)‡ 7680 x 4320 @ 60Hz Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz DirectX* Support 12 OpenGL* Support 4.5 Multi-Format Codec Engines 1 Intel® Quick Sync Video Yes Intel® Clear Video HD Technology Yes # of Displays Supported ‡ 4 Device ID 0x4692 OpenCL* Support 2.1 Expansion Options Direct Media Interface (DMI) Revision 4.0 Max # of DMI Lanes 8 Scalability 1S Only PCI Express Revision 5.0 and 4.0 PCI Express Configurations ‡ Up to 1x16+4, 2x8+4 Max # of PCI Express Lanes 20 Package Specifications Sockets Supported FCLGA1700 Max CPU Configuration 1 Thermal Solution Specification PCG 2020C TJUNCTION 100°C Package Size 45.0 mm x 37.5 mm Advanced Technologies Intel® Gaussian & Neural Accelerator 3.0 Intel® Thread Director No Intel® Deep Learning Boost (Intel® DL Boost) Yes Intel® Optane™ Memory Supported ‡ Yes Intel® Speed Shift Technology Yes Intel® Turbo Boost Max Technology 3.0 ‡ No Intel® Turbo Boost Technology ‡ 2.0 Intel® Hyper-Threading Technology ‡ Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes Intel® Volume Management Device (VMD) Yes Security & Reliability Intel® AES New Instructions Yes Secure Key Yes Intel® OS Guard Yes Execute Disable Bit ‡ Yes Intel® Boot Guard Yes Mode-based Execute Control (MBEC) Yes Intel® Control-Flow Enforcement Technology Yes Warranty 3 Years
